A SIZE FOR YOUR REQUIREMENTS
Performer Series Fans
A SIZE FOR YOUR REQUIREMENTS
Highlights
- Fan propellers are made of a composite fiberglass blend and carry a lifetime warranty.
- Blades are carefully balanced for maximum performance.
- Heavy-duty fan guards.
- Durable fiberglass housing.
- Automatic belt tensioner.
Built to Perform

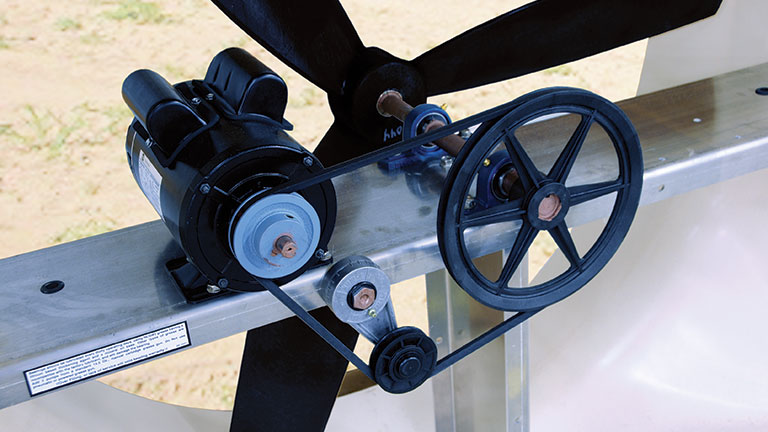

Performer Belt Drive
50-inch diameter Performer Series Fans include belt-driven 56-frame TEAO motors, 1” drive train and an automatic belt tensioner for smooth operation and constant belt tension. Large diameter pulleys with greasable pillow block bearings promote greater belt wrap and extended life.
Durable Construction

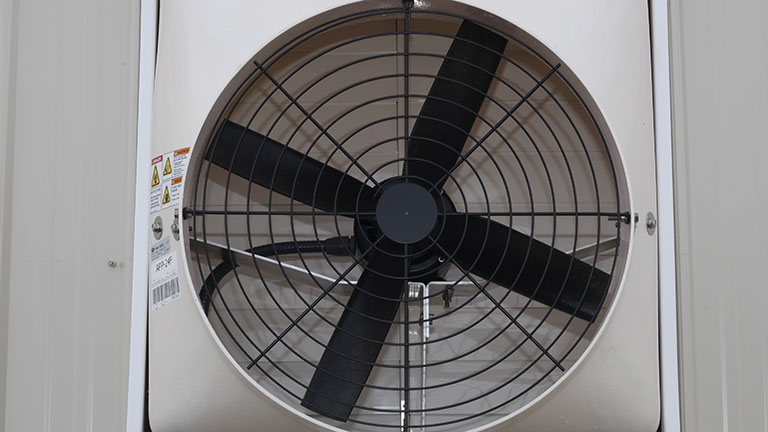

Performer Direct Drive
12 to 36-inch diameter Performance series fans include direct drive variable speed motors for efficient operation and minimal maintenance. Motors include a 3 year warranty. Motor mounts are constructed of heavy gauge aluminum.

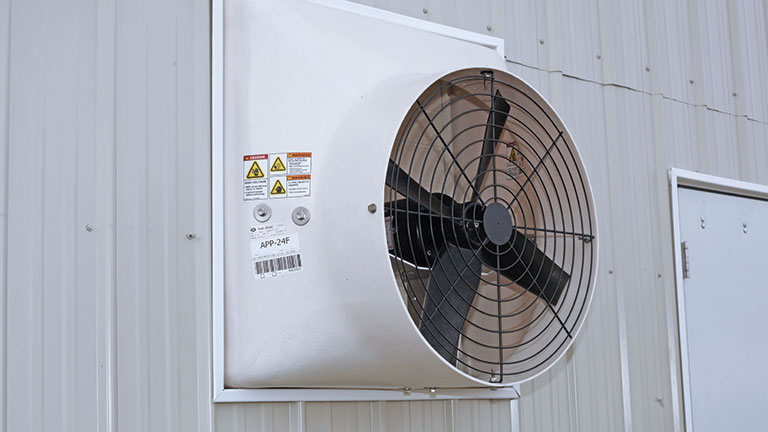

Fiberglass Housing
Durable and aerodynamic fiberglass housing with stainless steel mounting hardware.

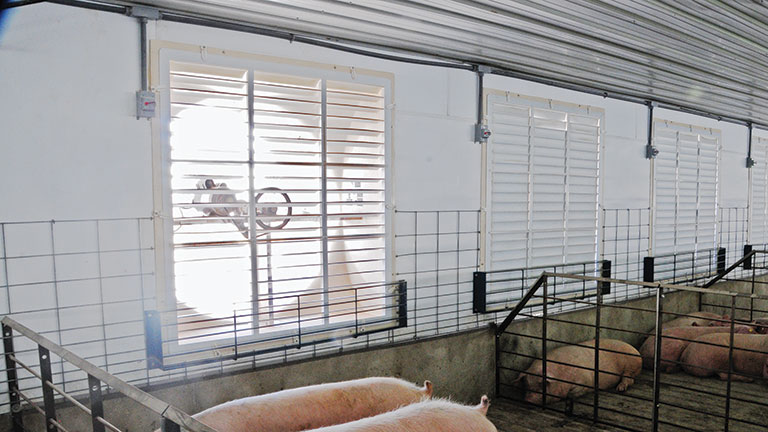

Shutters
Standard white PVC shutter with plastic rod hinges (pictured). Optional rust-free aluminum shutters are available for fans 12″ to 54″ wide, with optional motor operator where required.
Optional

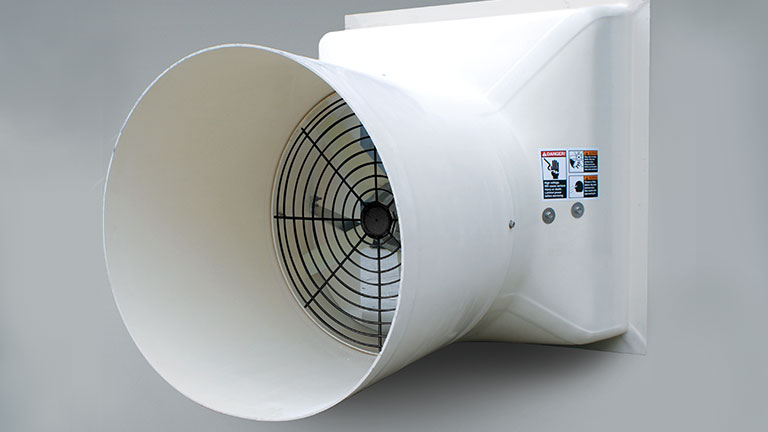

Discharge Cone
Boost fan output by as much as 15% with optional fiberglass discharge cones. Available as a one-piece unit for 14″ to 36″ fans, and as easy-to-ship and assemble multi-piece units for 50″ and 54″ fans.
Specifications
Fan Performance
| Model | 0.00″ SP | 0.05″ SP | 0.10″ SP | 0.15″ SP | 0.20″ SP | AFR | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CFM | CFM/Watt | CFM | CFM/Watt | CFM | CFM/Watt | CFM | CFM/Watt | CFM | CFM/Watt | ||
| APP-12F | 1446 | 8.8 | 1331 | 7.8 | 1222 | 7 | 1092 | 6.1 | 850 | 5.1 | 0.64 |
| APP-14F | 2487 | 7.8 | 2385 | 7.3 | 2270 | 7 | 2150 | 6.5 | 2003 | 6.1 | 0.84 |
| APP-14FC | 2830 | 9.6 | 2710 | 9 | 2610 | 8.5 | 2500 | 8 | 2370 | 7.4 | 0.87 |
| APP-18 | 4387 | 9.6 | 4181 | 9 | 3964 | 8.5 | 3792 | 8 | 3568 | 7.5 | 0.85 |
| APP-18FC | 5090 | 11.8 | 4890 | 11 | 4720 | 10.6 | 4470 | 9.7 | 4250 | 9 | 0.87 |
| APP-24 | 6442 | 14.7 | 5928 | 13.3 | 5463 | 12.1 | 4990 | 11 | 4495 | 9.8 | 0.76 |
| APP-24FC | 7470 | 18 | 7010 | 16.7 | 6550 | 15 | 6090 | 13.6 | 5550 | 12.3 | 0.79 |
| APP-36 | 11113 | 16.6 | 10297 | 15 | 9392 | 13 | 8328 | 11.5 | 7131 | 9.7 | 0.69 |
| APP-36FC | 12290 | 22.2 | 11310 | 19.6 | 10360 | 17.1 | 9220 | 14.8 | 7710 | 11.9 | 0.68 |
| APPB-50C | 24033 | 24.4 | 23228 | 22.7 | 21615 | 20.5 | 19188 | 17.7 | 17419 | 15.6 | 0.75 |
| APP-24PF | 4580 | 9.3 | 4158 | 8.4 | 3749 | 7.5 | 3289 | 6.8 | 2523 | 5.6 | 0.607 |
All fan performance numbers based on 60 Hz operation.
Specifications subject to change without notice.
